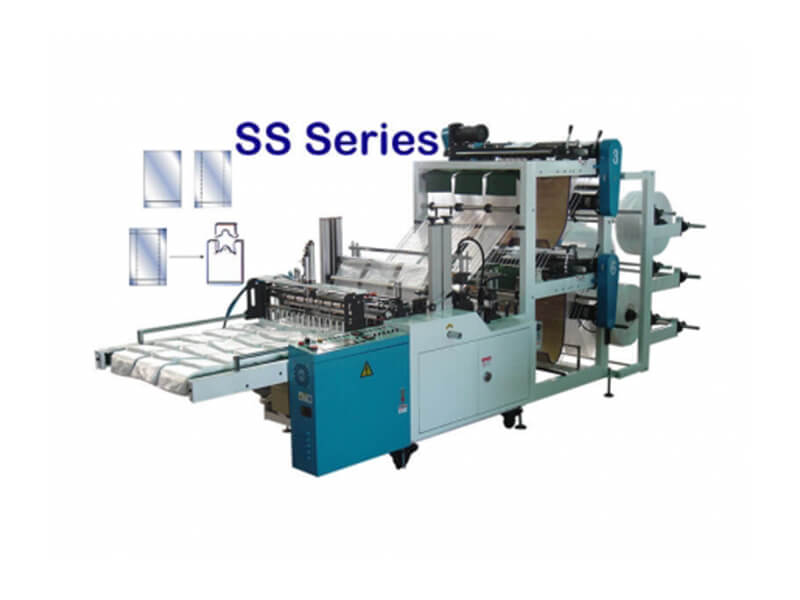

Multi Lane Bottom Sealing Bag Machine

  • Multi Lane Bottom Sealing Bag Machine - SS Series
Multi Lane Bottom Sealing Bag Machine
Model - SS Series
Multi-lane Bag Making Machine

MACHINE FEATURE:
  • With easy alternation of sealing knife for shopping bags and plain bags.
  • Adoption of electronic clutch and brake ensure accurate bag cutting and sealing within 1mm.
  • Sensor controls input of film rolls, assuring perfect sealing line without tension.
  • Automatically stops if film is empty or stuck.
  • Print sensors guarantee the precision for printed bags. (Optional)

SPECIFICATIONS:   P.S. Customization could be available.
Model Bag Size(Max.)
Line x W x L (mm)
Thickness
of film (mm)
Capacity
(cycle/min.)
Power
Required
Machine Size
L x W x H(M)
SERVO
TYPE
SS4-700V 1x2x680x1200
2x2x305x1200
0.008~0.15  30~160x4 7.6KW 4.25x1.55x1.99
SS4-800V 1x2x780x1250
2x2x355x1200
8KW 4.25x1.65x1.99
SS4-1000V 1x2x980x1200
2x2x455x1200
9.5KW 4.25x1.85x1.99
SS6-800V 1x2x780x1200
2x2x355x1200
3x2x220x1200
30~160x6 8.8KW 4.41x1.65x1.99
SS6-1000V 1x2x980x1200
2x2x455x1200
3x2x320x1200
10.3KW 4.41x1.85x1.99
CLUTCH
&
BRAKE
TYPE
SS4-700 1x2x680x1010
2x2x305x1010
0.008~0.15  30~110x4 6.2KW 4.25x1.55x1.99
SS4-800 1x2x780x1010
2x2x355x1010
6.6KW 4.25x1.65x1.99
SS4-1000 1x2x980x1010
2x2x455x1010
30~105x4 6.8KW 4.25x1.85x1.99
SS6-800 1x2x780x1010
2x2x355x1010
3x2x220x1010
30~110x6 7.5KW 4.41x1.65x1.99
SS6-1000 1x2x980x1010
2x2x455x1010
3x2x320x1010
30~105x6 7.7KW 4.41x1.85x1.99
  • Specifications are subject to change without notice.



SHENG-FON PLASTIC MACHINE CO., LTD.
SS Series
none
999999999 http://schema.org/InStock USD 2020-12-31
90out of 100based on 100user ratings
SHENG-FON PLASTIC MACHINE CO., LTD. is located in Taiwan and is specialized in manufacturing, supplying and exporting of Multi Lane Bottom Sealing Bag Machine. With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially Taiwan. Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
We are the most professional and best Multi Lane Bottom Sealing Bag Machine manufacturer in Taiwan. We have many years of history in Taiwan. Our products have been very popular among buyers for many years. Because the quality of the products is stable and the price is competitive in the market, we have successfully established long-term business relationships with buyers.
Enquiry Now
Products List
SHENG-FON PLASTIC MACHINE CO., LTD.
To find and shop the Bottom Sealing Cutting Machine, you need to know about the highest quality of Bottom Sealing Cutting Machine manufacturer, supplier, wholesaler, distributor from a factory in Taiwan

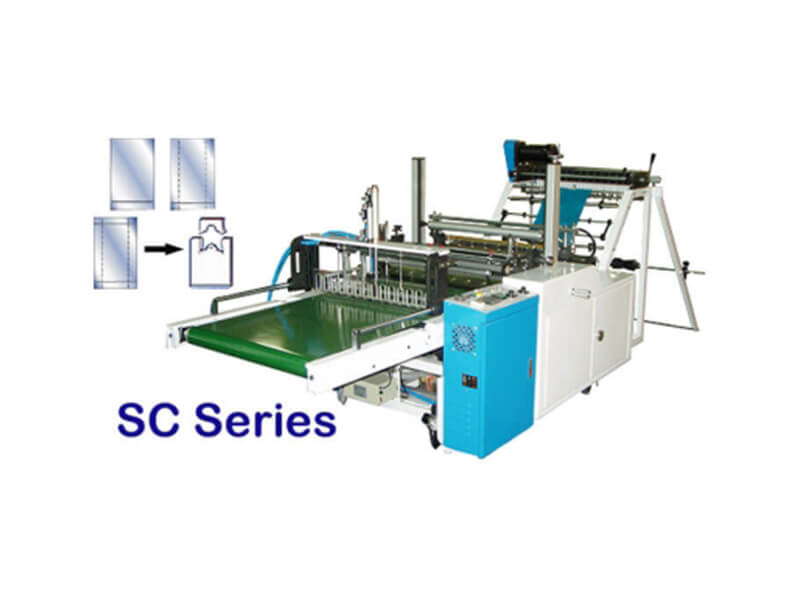

SC Series
