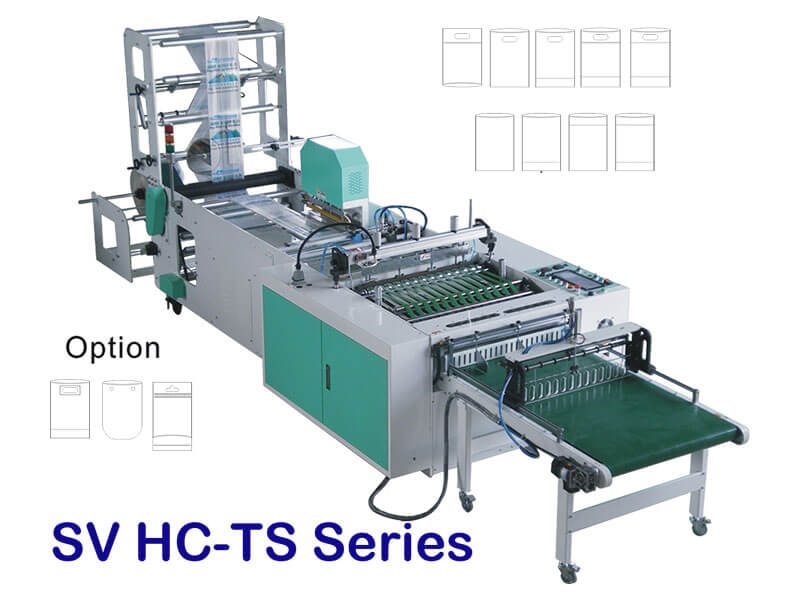

Bag Machine With Slit Seal And Patch Device

  • Bag Machine With Slit Seal And Patch Device - SV-HC-TS Series
Bag Machine With Slit Seal And Patch Device
- SV-HC-TS Series
Servo Driven Multilane Bottom Seal and T-shirt Bag Making Machine

MACHINE FEATURE:
  • Max. capacity 140 pieces / each line.
  • Able choice 4 lines and Up to 8 lines synchronization making the same specifications.
  • Fully digital control system with Human Machine Interface for data setting and showing.
  • Sealing bar can be changed easily for T-shirt bag or plain bag.
  • Out-feed by servo system, quick and easy length changes.
  • Automatically stops for out of film, jam bags, temperature abnormal, safety...etc.
  • Smart scissors adjustment design for the cutting knife, save your time and money.
  • Freight control: 20FT container can loading 4sets SS-800VS4 or3 sets SS-1000VS4, and 40FT container can loading 8 sets SS-800VS4 or 7 sets SS-1000VS4 machine.
  • Choose extra equipment to increase functions:
  1. Automatic table conveyor for stacks then move.
  2. Hot pin stack for T-shirt bag.
  3. Heavy duty bag equipment for making thick bags.
  4. More line equipment for 8 lines in line.
  5. Bottom silicon roller for sealing device, reduce the transfer resistance and increase sealing strength.

SPECIFICATIONS:   P.S. Customization could be available.
Model Bag Size(mm) Production Sped
(bags/min.)		 Thickness of
Film (mm)		 Servo motor Power Required Machine Size
xWxH(M)
Length Width Top Folding Bottom
Guessting
SV-800HC 65~760 76~770 Up to 75mm Up to 65mm 30~250 0.01~0.2 2.9kw 7.5KW 4.6x1.55x2.0
SV-1000HC 85~960 4.4kw 9.0KW 4.6x1.75x2.0
SV-1200HC 100~1150 4.4kw 9.7KW 4.6x1.95x2.1

Option equipment :
  1. Air Compressor:3HP
  2. Double Sealing device.
  3. Punching device
  4. Top-fold sealing device
  5. Self-adhensive Tape Feeding
  6. Perforating device
  7. Air shaft
  8. EPC with Auto unwinder
  9. Folder
※Specifications are subject to change without notice.


SHENG-FON PLASTIC MACHINE CO., LTD. is a professional manufacturer & supplier of Bag Machine With Slit Seal And Patch Device. Our products and services have being exported to all parts of the worldwide markets. The company pays a great deal of attention to the introduction and training of talented employees. Our R&D team is capable of carrying out your special product requirements.
Serious working attitudes, high working efficiency, and outstanding work are the essence of the Company's growth principle. We assure you of on-time delivery of finest

Bag Machine With Slit Seal And Patch Device

backed by prompted and careful after-sales service.
Enquiry Now
View Detail

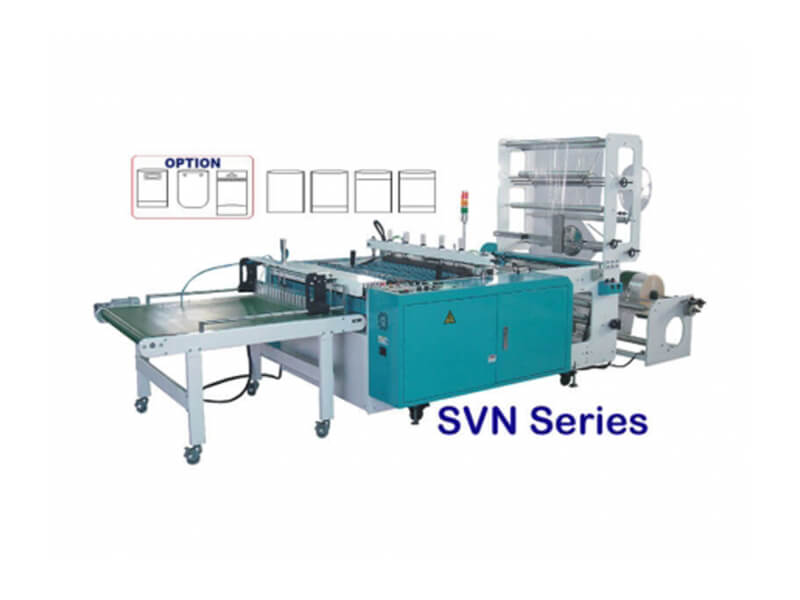

Universal Bag Machine - SVN Series
Universal Bag Machine
SVN Series
SHENG-FON PLASTIC MACHINE CO., LTD.
To find and shop the Three Side Sealing Machine, you need to know about the highest quality of Three Side Sealing Machine manufacturer, supplier, wholesaler and distributor from a factory
SVN Series
none
999999999 http://schema.org/InStock USD 2020-12-31
90out of 100based on 100user ratings
View Detail

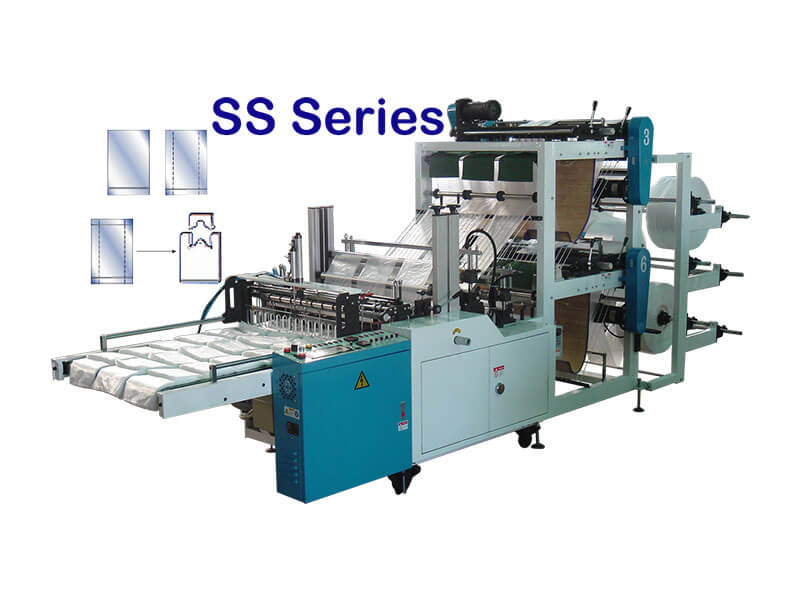

Multi Lane Bottom Sealing Bag Machine - SS Series
