Draw Tap Bag Machine

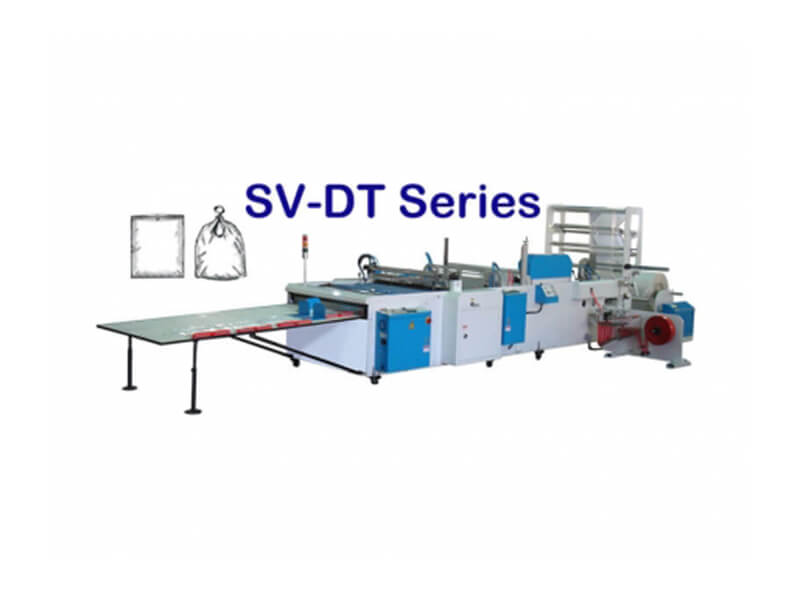

  • Draw Tap Bag Machine - SV-DT Series
Draw Tap Bag Machine
Model - SV-DT Series
Poly-draw Bag Making Machine(Sheet type)

MACHINE FEATURE:
  • Draw-tape slitter is specially designed for use with the draw-tape bag making machine and reduces the reel change cycle, doubles the usage time and increases production.
  • The EPC device combined with the unwinder is sensitive and stable for easy operation.
  • Fully automatic unwinder, unwind speed auto-adjust. (Optional)
  • Triangle folding device, easily and smoothly folds the single layer filminto double. (Optional)
  • Choice of overlapping EPC and triangle folding device to save on occupied installation space.
  • Mixed use of multi-functions, can produce many different styles of bags.
  • Standard equipments are the double lip folding device, bottom gusset device and side opening device. (Side opening)
  • Special rotary seal knife design makes the cleaning of seal knife safe, convenient, quick and easy.
  • Special pneumatic gate and press roller device, cooperating with the main machine, can carry and out-feed the blocked finished product. (Optional)
  • Optional equipment: self-adhesive device, pearl insertion device, punching unit, double sealing device and block out-feed device.

SPECIFICATIONS:   P.S. Customization could be available.
Model Bag Size (mm) Production Speed
(bags/min)		 Thickness of Film(mm) Power required Machine Size
LxWxH(M)
Width Length Top Folding Bottom Guessting
Poly-draw Bag Side Seal Bag Poly-draw Bag Side Seal Bag Draw Tape Side Seal Bag
SV-1000-DT 100~700 100~860 100~950 Up to 75mm Up to 65mm 20~100 20~160 HDPE
0.03~0.08
LDPE
0.07~0.10		 HDPE
0.03~0.08
LDPE
0.05~0.12		 6.2KW 8.33x1.75x2.0
SV-1200-DT 100~850 100~1050 100~1150 Up to 75mm Up to 65mm 20~100 20~150 HDPE
0.03~0.08
LDPE
0.07~0.10		 HDPE
0.03~0.08
LDPE
0.05~0.12		 6.7KW 9.00x1.95x2.0
SV-1500-DT 100~1150 100~1300 100~1440 Up to 75mm Up to 65mm 20~100 20~135 HDPE
0.03~0.08
LDPE
0.07~0.10		 HDPE
0.03~0.08
LDPE
0.05~0.12		 9.2KW 9.90x2.25x2.0

Optional Equipment:
  1. Air Compressor:3HP
  2. Double Sealing device
  3. Punching Device
  4. Top-fold Seal Device
  5. Self-adhesive Tape Feeding
  6. Perforation Device
  7. Air Shaft
  8. EPC with Auto Unwinder
  9. Triangle Folding Device
※Specifications are subject to change without notice.

SHENG-FON PLASTIC MACHINE CO., LTD.
SV-DT Series
none
999999999 http://schema.org/InStock USD 2020-12-31
90out of 100based on 100user ratings
SHENG-FON PLASTIC MACHINE CO., LTD. is a professional Draw Tap Bag Machine supplier. Over ten years experiences in the fields of materials, we are becoming the leader of the first line in the market. We laid our foot years back & ever since we are striving to deliver in our products innovation, competitive pricing & quality driven customer satisfaction.
We have a number of professional organizations, specialized manufacturing

Draw Tap Bag Machine

. We would like to have mutually beneficial relationship with your organization. We shall appreciate your positive response, with your specific requirements along with an indication of the qualities that you are looking for.
Enquiry Now
Products List
View Detail

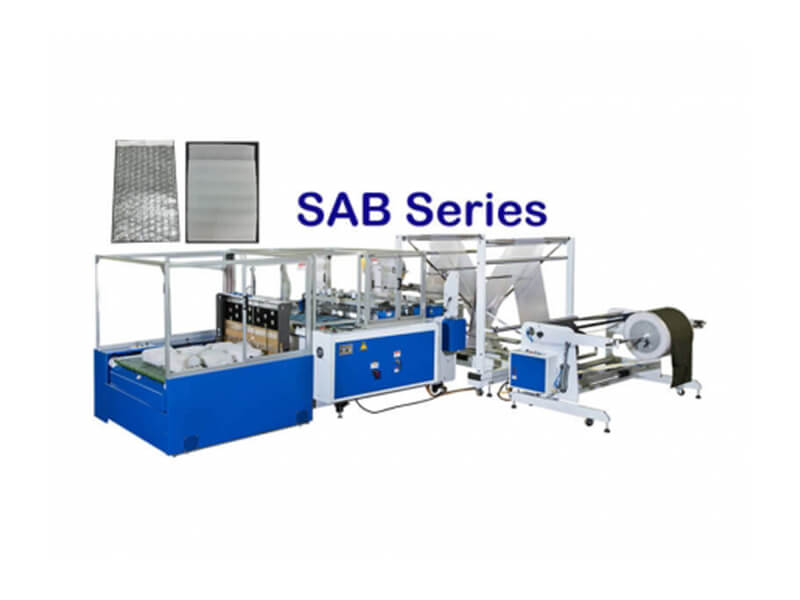

Bubble Bag Machine - SAB Series
Bubble Bag Machine
SAB Series
SHENG-FON PLASTIC MACHINE CO., LTD.
To find and shop the Trash Bag Making Machine, you need to know about the highest quality of Trash Bag Making Machine manufacturer, supplier, wholesaler and distributor from a factory in Taiwan
SAB Series
none
999999999 http://schema.org/InStock USD 2020-12-31
90out of 100based on 100user ratings
View Detail
Glove Bag Machine - SGD Series
Glove Bag Machine
SGD Series
SHENG-FON PLASTIC MACHINE CO., LTD.
To find and shop the Trash Bag Making Machine, you need to know about the highest quality of Trash Bag Making Machine manufacturer, supplier, wholesaler and distributor from a factory in Taiwan
SGD Series
none
999999999 http://schema.org/InStock USD 2020-12-31
90out of 100based on 100user ratings
View Detail

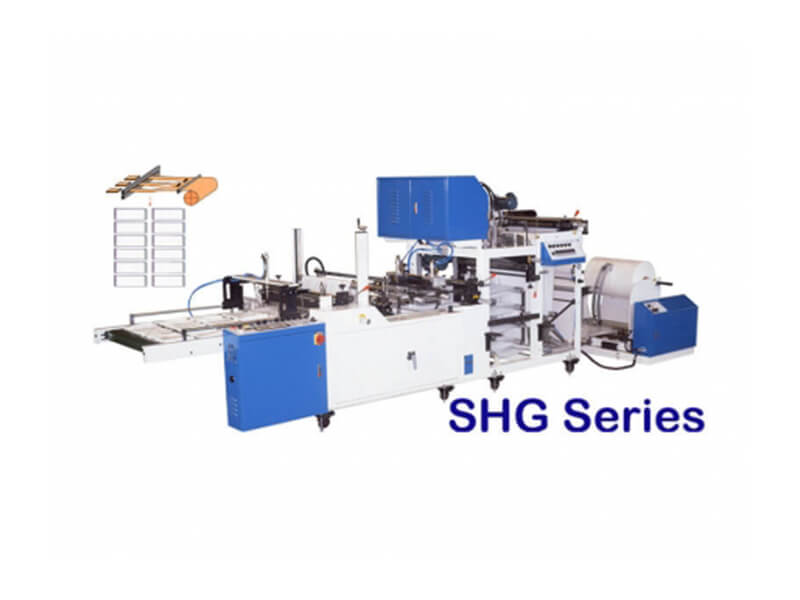

Multi Bag Machine With Slit Seal - SHG Series
Multi Bag Machine With Slit Seal
SHG Series
SHENG-FON PLASTIC MACHINE CO., LTD.
To find and shop the Trash Bag Making Machine, you need to know about the highest quality of Trash Bag Making Machine manufacturer, supplier, wholesaler and distributor from a factory in Taiwan
SHG Series
none
999999999 http://schema.org/InStock USD 2020-12-31
90out of 100based on 100user ratings
View Detail

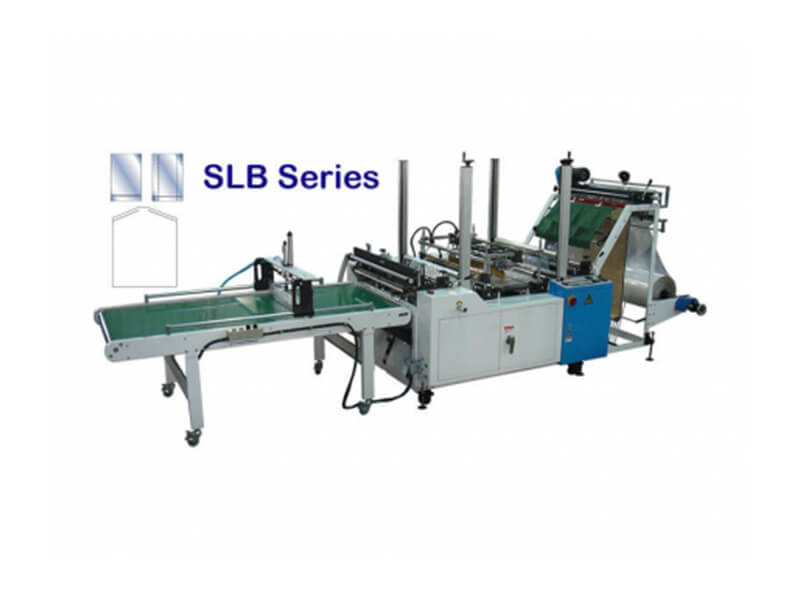

Laundry Bag Machine - SLB Series
