TürkCoreless And Core Bag On Roll Machine
Coreless And Core Bag On Roll Machine

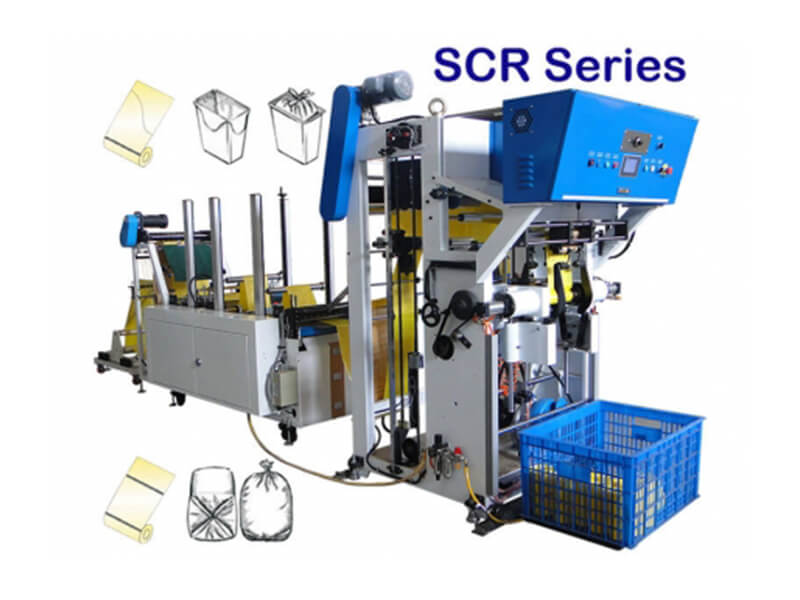

Model - SCR Series
Core and Coreless S-Die Cut Bottom Sealing Or Star Sealing Bag on Roll Making Machine
MACHINE FEATURE:
SPECIFICATIONS: P.S. Customization could be available.
Optional Equipment
MACHINE FEATURE:
- Maximum line speed 60M/minute.
- Servo driven to out-feed system, the film by tensionless sealing.
- No film or break bag auto check to stop.
- Rewind device is controlled by speed system, rewind speed will follow automatically.
- Rewind auto change system, bag making will not stop.
- P.L.C. and cutting programmed are online controlled; H.M.I. value setting.
- Simultaneously optional of core and coreless rewind device.
- Simultaneously optional of S-die cut and bottom seal perforation device.
SPECIFICATIONS: P.S. Customization could be available.
| Model | Making Bag (mm) | Making bag speed (bags/min) Line speed |
Air supply required | Heater Cap. (KW) |
Motor Cap. (KW)(HP) |
Power Req (KW). |
Machine Size | |||||||||
| Sealing & Cutting | Coreless Rewind | Core Rewind | Core size Dia.*L | L. | W. | H. | ||||||||||
| Width | Length | Thickness | Width | Dia. | Width | Dia. | ||||||||||
| SCR-500VWS | 50~350 | 100~1900 | 0.08~0.15 | 75~400 | Max.130 | 220~475 | Max.200 | D35-D55*L220-475 | (20-120/Min) 60/Min. |
0.5~0.7Mpa 300L/min |
Total:1.4KW | Servo motor:2.9KW AC motor:4HP+Gear box |
7.5KW | 5.5M | 2.0M | 2.2M |
Optional Equipment
- Air Compressor: 3HP;
- Air Shaft
SHENG-FON PLASTIC MACHINE CO., LTD. is the leading manufacturer, supplier and exporter of Coreless And Core Bag On Roll Machine in Taiwan in all customized prices so as to suit the preferences of our clients and delivered within a stipulated time frame. Our company is backed by superior and advanced manufacturing techniques to offer impeccable quality products to our clients. These are procured from manufacturers who uses quality raw material and follow regulatory industry standards during manufacturing. These are exported at economical prices and are at par with the international quality standards.
Our
Coreless And Core Bag On Roll Machine
products applications are worldwide valued and appreciated by our clients's and their end-user customers. We also welcome new clients, to discover the quality and service that we deliver.Enquiry Now
Products List
SHENG-FON PLASTIC MACHINE CO., LTD.
To find and shop the Trash Bag Machine, you need to know about the highest quality of Trash Bag Machine manufacturer, supplier, wholesaler and distributor from a factory in Taiwan
STR-V4 Series
none
999999999
http://schema.org/InStock
USD
2020-12-31
https://www.carrybagmachine.com/core-bag-on-roll-machine.html
SHENG-FON PLASTIC MACHINE CO., LTD.
90out of
100based on
100user ratings
SHENG-FON PLASTIC MACHINE CO., LTD.
To find and shop the Trash Bag Machine, you need to know about the highest quality of Trash Bag Machine manufacturer, supplier, wholesaler and distributor from a factory in Taiwan

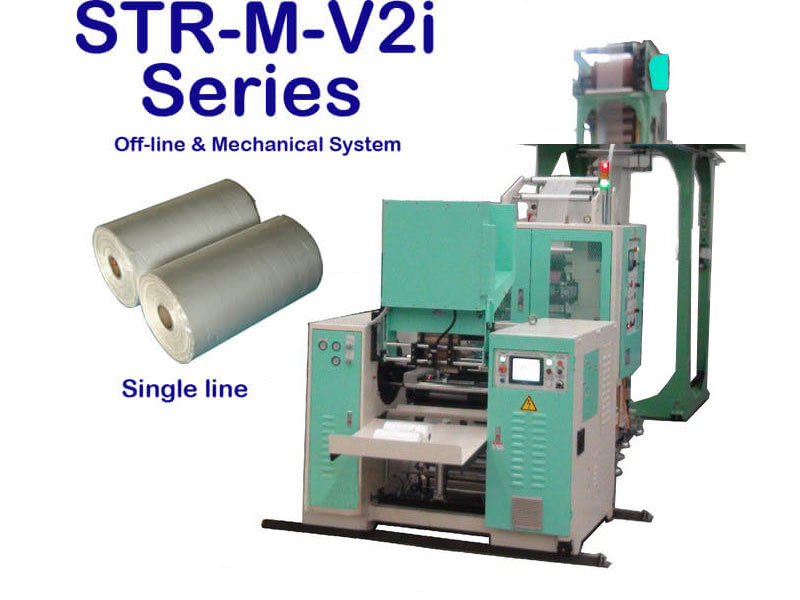

STR-M-V2i Series
none
999999999
http://schema.org/InStock
USD
2020-12-31
https://www.carrybagmachine.com/core-bag-on-roll-machine-1.html
SHENG-FON PLASTIC MACHINE CO., LTD.
90out of
100based on
100user ratings
SHENG-FON PLASTIC MACHINE CO., LTD.
To find and shop the Trash Bag Machine, you need to know about the highest quality of Trash Bag Machine manufacturer, supplier, wholesaler and distributor from a factory in Taiwan

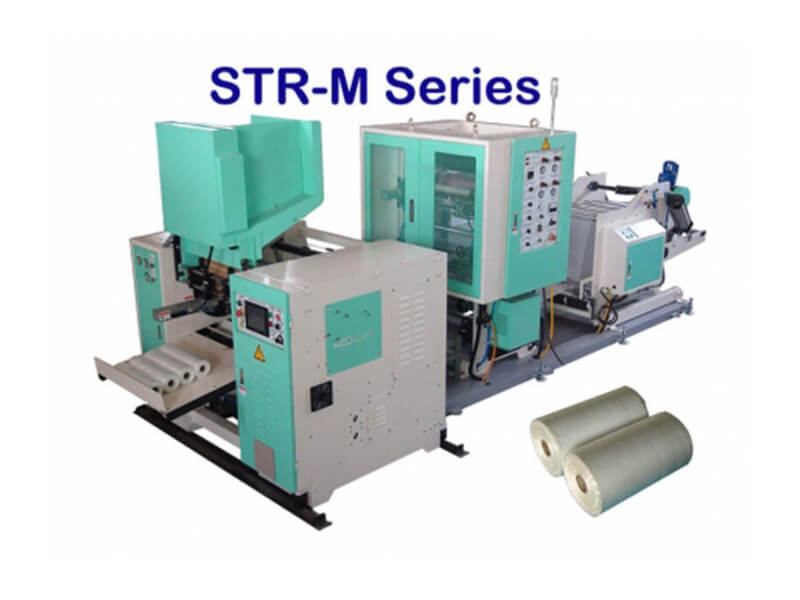

STR-M Series
none
999999999
http://schema.org/InStock
USD
2020-12-31
https://www.carrybagmachine.com/core-bag-on-roll-machine-2.html
SHENG-FON PLASTIC MACHINE CO., LTD.
90out of
100based on
100user ratings
SHENG-FON PLASTIC MACHINE CO., LTD.
To find and shop the Trash Bag Machine, you need to know about the highest quality of Trash Bag Machine manufacturer, supplier, wholesaler and distributor from a factory in Taiwan

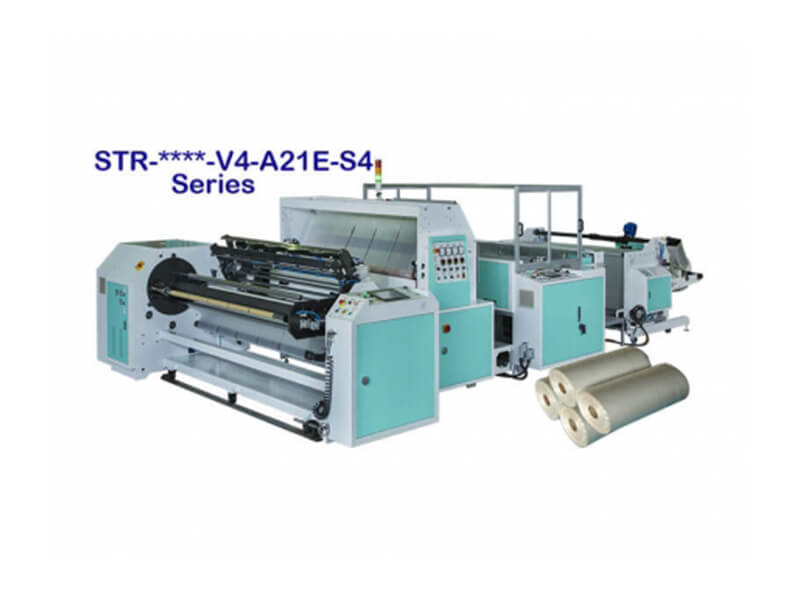

STR- ****V4-A21E-S4 Series
none
999999999
http://schema.org/InStock
USD
2020-12-31
https://www.carrybagmachine.com/core-bag-on-roll-machine-3.html
SHENG-FON PLASTIC MACHINE CO., LTD.
90out of
100based on
100user ratings
SHENG-FON PLASTIC MACHINE CO., LTD.
To find and shop the Trash Bag Machine, you need to know about the highest quality of Trash Bag Machine manufacturer, supplier, wholesaler and distributor from a factory in Taiwan
STR- ****S-A21E-Sn Series
none
999999999
http://schema.org/InStock
USD
2020-12-31
https://www.carrybagmachine.com/core-bag-on-roll-machine-4.html
SHENG-FON PLASTIC MACHINE CO., LTD.
90out of
100based on
100user ratings
SHENG-FON PLASTIC MACHINE CO., LTD.
To find and shop the Trash Bag Machine, you need to know about the highest quality of Trash Bag Machine manufacturer, supplier, wholesaler and distributor from a factory in Taiwan

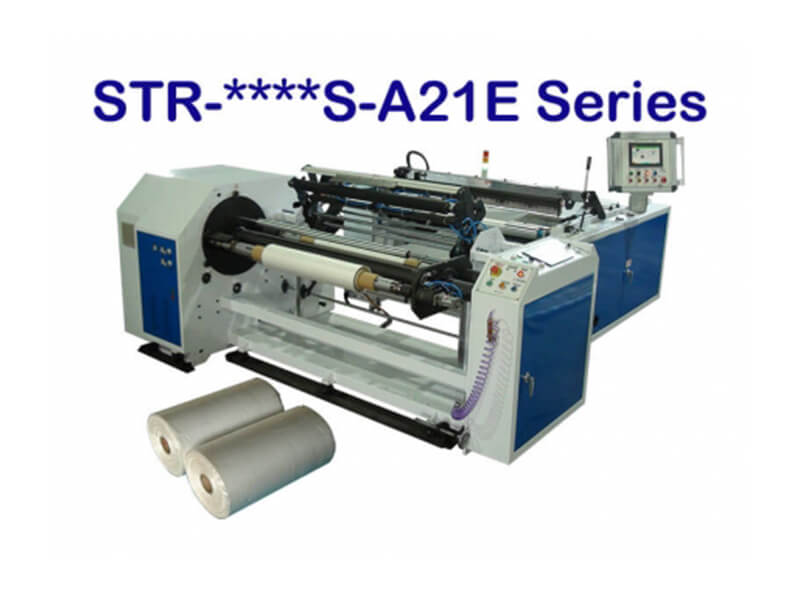

STR-****S-A21E Series
none
999999999
http://schema.org/InStock
USD
2020-12-31
https://www.carrybagmachine.com/core-bag-on-roll-machine-5.html
SHENG-FON PLASTIC MACHINE CO., LTD.
90out of
100based on
100user ratings
SHENG-FON PLASTIC MACHINE CO., LTD.
To find and shop the Trash Bag Machine, you need to know about the highest quality of Trash Bag Machine manufacturer, supplier, wholesaler and distributor from a factory in Taiwan

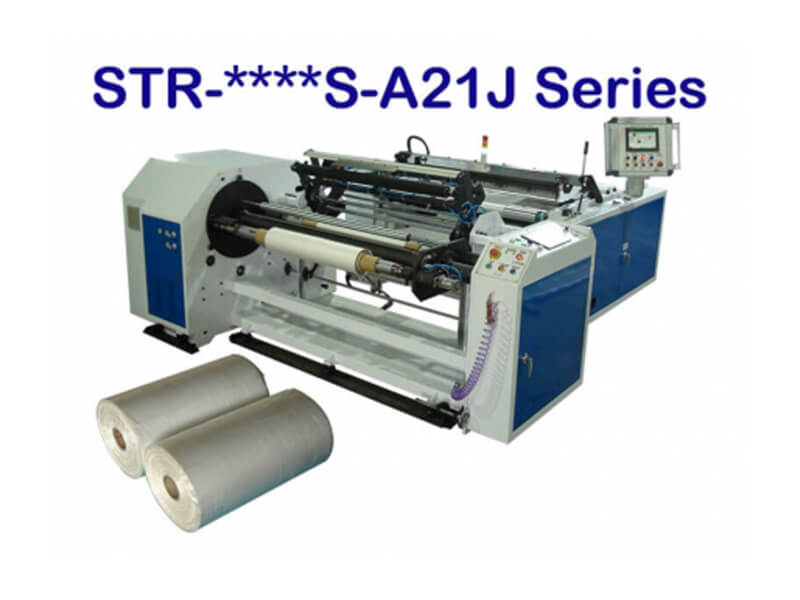

STR-****S-A21J Series
none
999999999
http://schema.org/InStock
USD
2020-12-31
https://www.carrybagmachine.com/core-bag-on-roll-machine-6.html
SHENG-FON PLASTIC MACHINE CO., LTD.
90out of
100based on
100user ratings
SHENG-FON PLASTIC MACHINE CO., LTD.
To find and shop the Trash Bag Machine, you need to know about the highest quality of Trash Bag Machine manufacturer, supplier, wholesaler and distributor from a factory in Taiwan

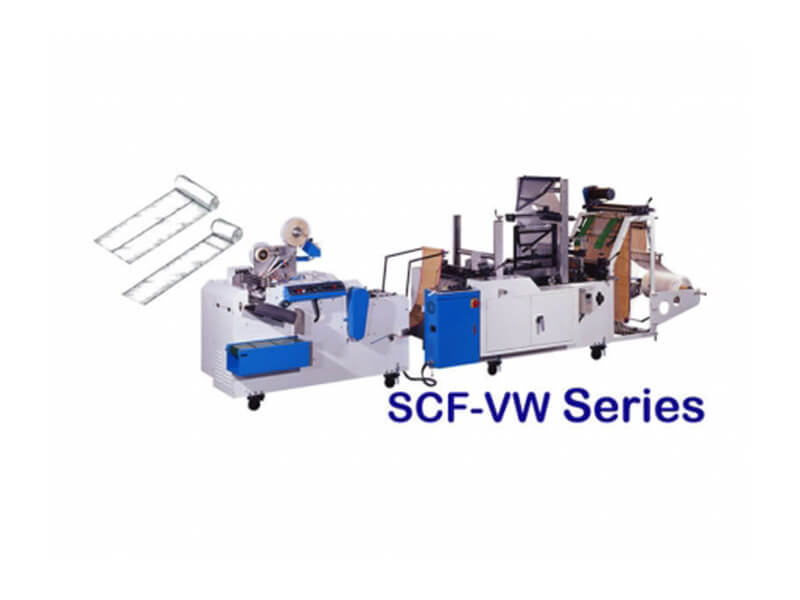

SCF-VW
none
999999999
http://schema.org/InStock
USD
2020-12-31
https://www.carrybagmachine.com/coreless-bag-on-roll-machine-2.html
SHENG-FON PLASTIC MACHINE CO., LTD.
90out of
100based on
100user ratings
SHENG-FON PLASTIC MACHINE CO., LTD.
To find and shop the Trash Bag Machine, you need to know about the highest quality of Trash Bag Machine manufacturer, supplier, wholesaler and distributor from a factory in Taiwan

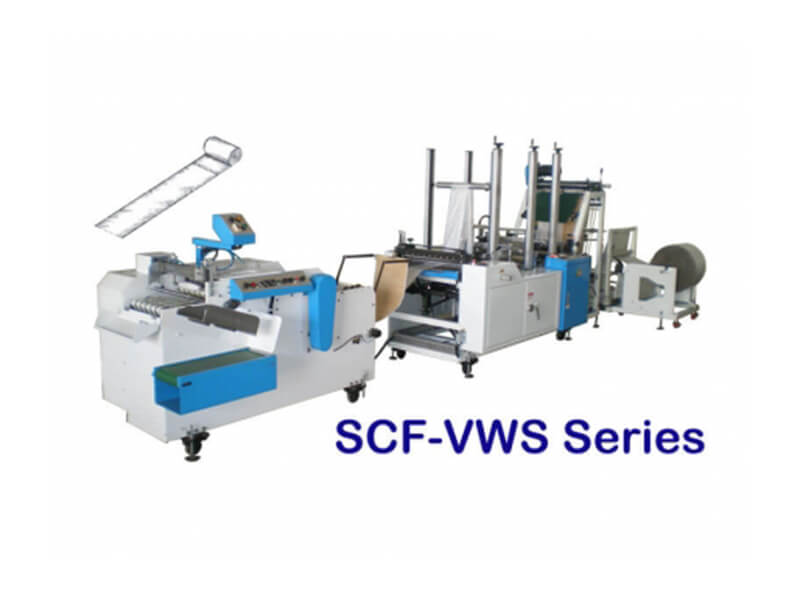

SCF-VWS
none
999999999
http://schema.org/InStock
USD
2020-12-31
https://www.carrybagmachine.com/coreless-bag-on-roll-machine-3.html
SHENG-FON PLASTIC MACHINE CO., LTD.
90out of
100based on
100user ratings
SHENG-FON PLASTIC MACHINE CO., LTD.
To find and shop the Trash Bag Machine, you need to know about the highest quality of Trash Bag Machine manufacturer, supplier, wholesaler and distributor from a factory in Taiwan

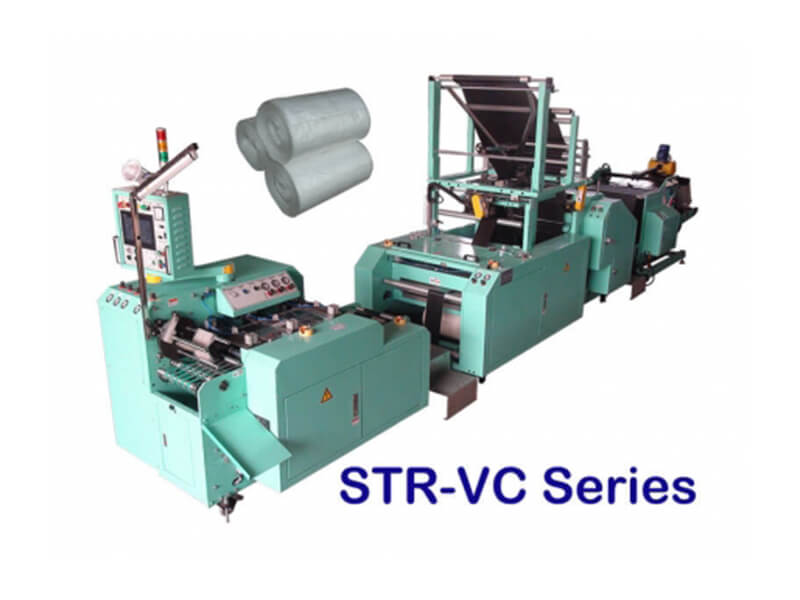

STR-VC Series
none
999999999
http://schema.org/InStock
USD
2020-12-31
https://www.carrybagmachine.com/coreless-bag-on-roll-machine.html
SHENG-FON PLASTIC MACHINE CO., LTD.
90out of
100based on
100user ratings
SHENG-FON PLASTIC MACHINE CO., LTD.
To find and shop the Trash Bag Machine, you need to know about the highest quality of Trash Bag Machine manufacturer, supplier, wholesaler and distributor from a factory in Taiwan

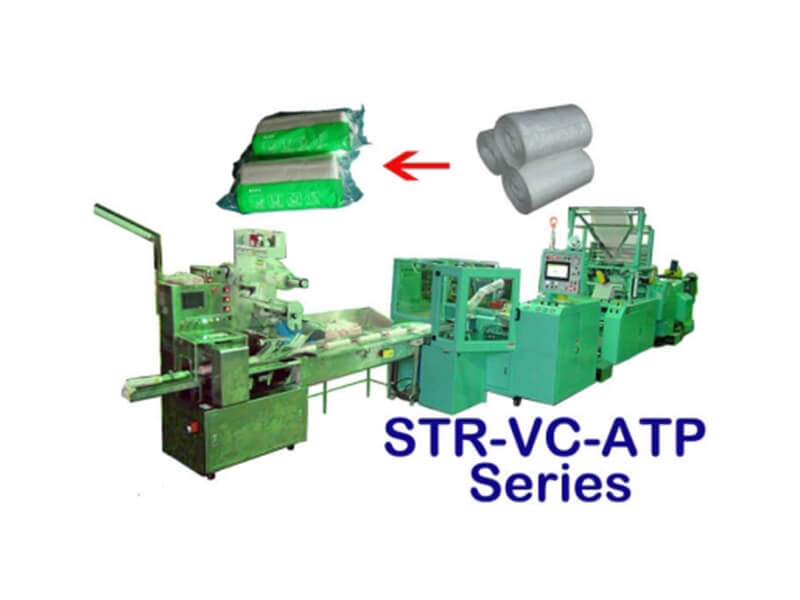

STR-VC-ATP Series
